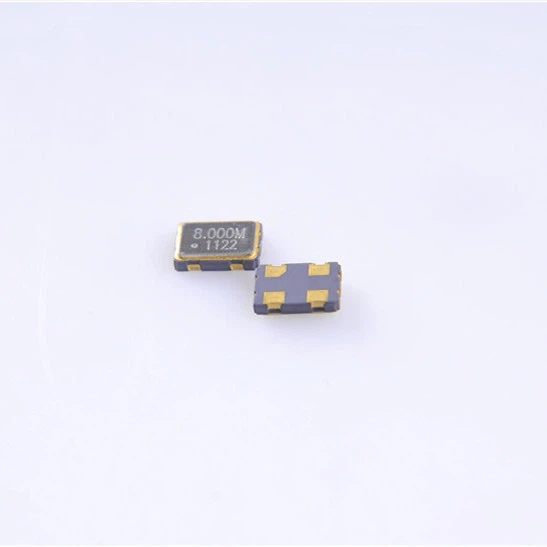

SCXO11B/20A SMD Crystal

​ MODEL: SCXO11BG10MDHIT
FEATURES
High reliability, anti-vibration & shock
SMD package, small size

Send Inquiry

SMD Crystal Oscillator

MODEL: SCXO11BG10MDHIT

FEATURES

High reliability, anti-vibration & shock

SMD package, small size


ELECTRONIC PARAMETERS

Parameters

Specifications

Nominal frequency

10MHz

Other recommended frequency

2\ 3.6864\ 12\ 14.7456\ 16\ 16.7772\ 20\ 24\ 24.576\ 25\ 30\ 32.768\ 100\ 125

External size

7.0mm*5.0mm*1.8mm

Weight

0.20g (Max.)

Power voltage

3.3V±5%

Operating current

≤30mA

Operating temperature

-55°C to +125°C

Storage temperature

-55°C to +125°C

Output

Output electric level

TTL/CMOS

Tri-state

Yes

Up/down time

≤6ns

Duty cycle

50%±5%

Frequency stability

Initial accuracy

≤±20ppm (25℃±2℃)

Stability

≤±75ppm (-55℃±125℃)

Storage temperature

-55°C to +85°C

Power consumption (warm up)

5w/2.5w (Max.) @25℃

Frequency control

≥±1ppm (custom )

Aging

±0.05ppm~±0.5ppm

External drawing and pins definition


Pins Definition:

1. NC/ Tri-state control

2. Grounded

3. OUT

4. Power voltage (VDD)
