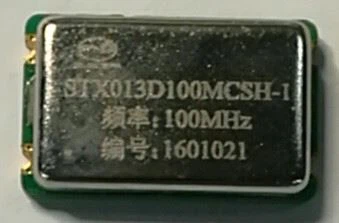

STXO13 Compensated TCXO

​ MODEL: STXO13D100MBSH
Low Phase Noise (-145dBc/Hz@1kHz)
High Stability (0.5ppm)
Wide Frequency Range (up to 150MHz)
Miniature Package (20mm×12.5mm×5.2mm)

Send Inquiry

MODEL: STXO13D100MBSH


FEATURES

Low Phase Noise (-145dBc/Hz@1kHz)

High Stability (0.5ppm)

Wide Frequency Range (up to 150MHz)

Miniature Package (20mm×12.5mm×5.2mm)


ELECTRONIC PARAMETERS

Parameters

Conditions

Min.

Typ

Max.

Units

Nominal Frequency

100.000

MHz

Supply voltage

4.75

5

5.25

V

Package size

20×12.5×5.2

mm

Power consumption


25

mA

Freq. stability vs. load

RL±5%

±0.2

ppm

Freq. stability vs. supply voltage

VDD±5%

±0.2

ppm

Freq. stability vs. temperature

Referenced to 25℃ (-40 to +85°C )

±0.5

ppm

Initial tolerance

Vcont=+1.5V@25℃

±1

ppm

Aging

per 1st year

±1

ppm

Operating temperature range

-40

85

Output wave

SINWAVE

Output power

VDD=5V

7

8

9

dBm

Output load

50

Ω

Harmonics

-30

dBc

Spurs

-70

dBc

Pull range

Vcont=0 to 3V

±3

ppm

Linearity

±10

%

Slope

positive

Control voltage

0

1.5

3.0

V

SSB Phase Noise

@ 100Hz offset

@100MHz

-115

-110

dBc/Hz

@ 1kHz offset

-145

-140

dBc/Hz

@ 10kHz offset

-155

-150

dBc/Hz

@ 100kHz offset

-160

-155

dBc/Hz

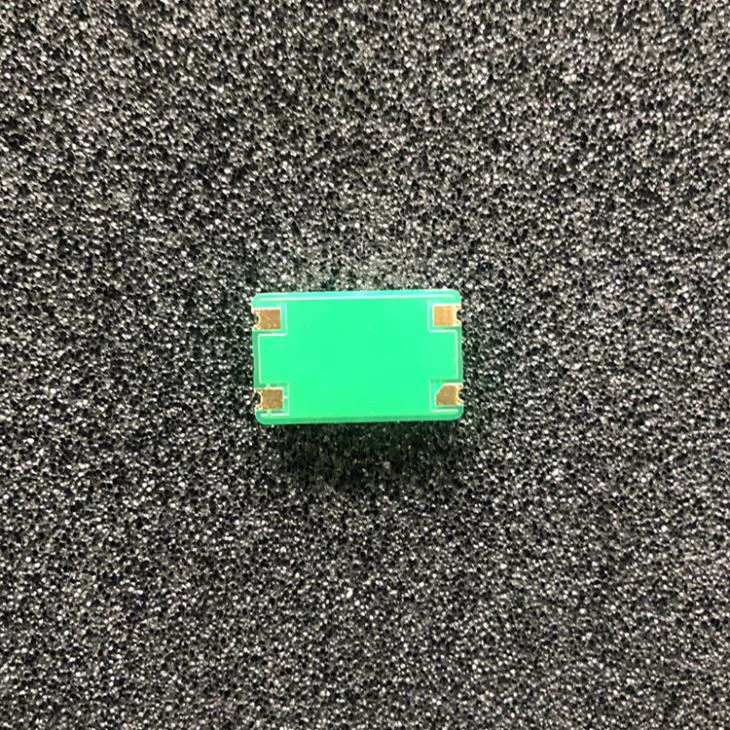

PACKAGE



PIN DESCRIPTION

1. Control Voltage Input; Vcont

2. Ground Case; GND

3. RF Output; OUT

4. Supply Voltage; Vdd

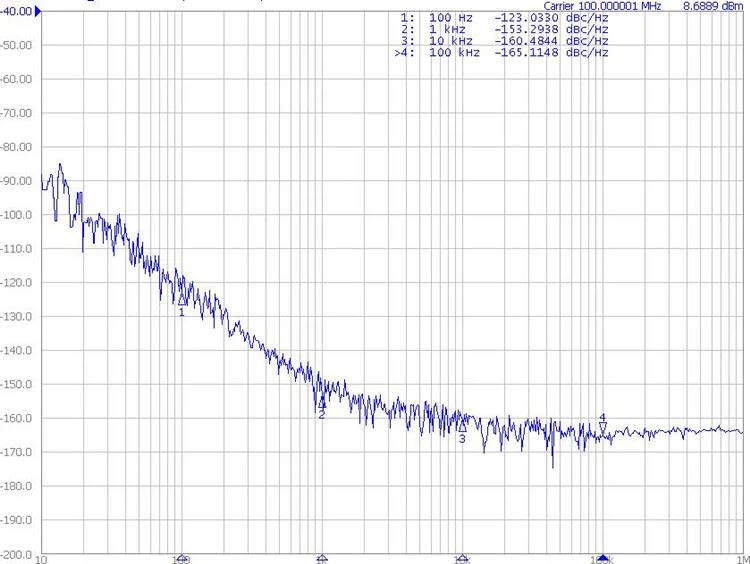

TYPICAL SSB PHASE NOISE


Notes: Consult factory about other frequencies or special requirement.
